Description

Brand: PValley

Model: SM-748M6

Country of Origin: China

Manufacturer: Bangladesh

Features:

• This should be a universal programming logic controller training system which should be built on a portable aluminum alloy frame
• It should provide multiple connecting methods for both input and output points
• All component terminals should led out to 4mm safety sockets for clear education and easy operation purpose by using banana cable sets
• Serial port and circular connector should be used to realize fast connection with external application unit
• This universal PLC system to be used as the programming unit for different training systems

Technical Specifications:

• Power supply:
  • Input power supply: 1 phase AC 220V ±10% with ELCB, fuse protector and seat
  • AC 220V output: 2-way 1 phase output sockets with cover, 1 way single phase 4mm output
  • DC 24V output: 1-way DC 24V through circular connector, 4-way DC 24V 4mm output with indicator
• Programming logic controller:
  • With all I/O leading to 4mm socket
  • Programming languages: STL/LAD/FBD
  • Siemens SIMATIC S7-200 SMART relay type
  • Digital input x12, digital output x8
  • Ethernet / RS485 communication with additional serial port
  • ..264V AC, 47…63Hz
  • Frame and panel: Engraved and colorized printed panel, standard aluminum profile frame structure
  • Power cord and connecting cable suite

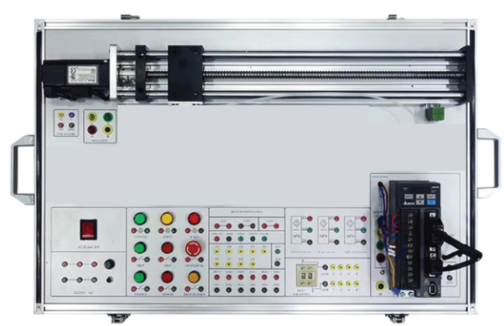

• Should be supplied with below Servo Motor Linear Control Trainer to be operated by above Universal PLC Training System:
  • Features:
  • This unit should be a servo motor based linear motion control system, which should cover basic application for servo motor control technology and sensor technology
  • Various linear motion positioning modes to be performed in this system using different feedback elements, such as servo pulse positioning, Z phase positioning, dial switch positioning and round trip positioning modes.

Training Content:

• Servo motor and driver
• Servo drive motion control
• Industrial application
• Proximity sensor
• Dial switch value input
• Different motion positioning

Technical Specifications:

• Linear Motion Mechanism:
• Servo motor: Input 110VAC, 0.9A, output 3000r/min, 0.32N.m, 100W
• Servo driver: 100W, 3PH 200 – 230V, 0.39A, 1PH 200 – 230V, 0.69A, output 110V, 0 – 250Hz, 0.9A
• Ball screw: travel 400mm, lead 4mm
• Proximity sensor x3: Groove photo switch, NPN-NC x 2, NPN-NO
• Mounting frame: Aluminium profile for ball screw and proximity sensor
• Power supply unit: AC 220V socket input, with three way DC24V output and short circuit protection
• Indicators and buttons: Running, alarm, origin indicators, start/stop and forward/reverse control buttons, emergency button, all with 2mm sockets
• Dial switch: 2-bit with 8421 BCD
• Experiment box and panel: Complete frame made of grooved aluminium profile, detachable upper cover with transparent design, the panel should adopt engraved and printed panel
• Cable suite: 2mm, section: 0.5 mm2 SR wire, 4mm whole sealed cable section: 16AWG, with axial socket
• Manual: Programming and wiring sample are provided, together with schematic diagrams

Warranty: 1 (One) year with services
